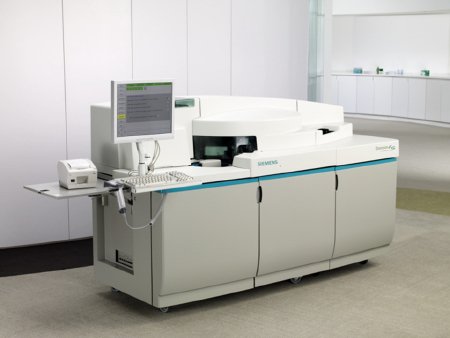

Picture of Integrated Chemistry System Dimension EXL10486890

Integrated Chemistry System Dimension EXL10486890

Integrated-Chemistry-System-Dimension-EXL10486890

SKU #

#1034128

MPN #

10486890

Brand

Siemens

Stock

In Stock

Quantity

100

Features

INSTRUMENT, DIMN EXL WITH LM D/S

$181,260.59 USD

Product Specifications Product Usage Additional Information
Print
Attribute Name Attribute Value
McKesson # 1034128
Manufacturer # 10486890
Brand Dimension EXL
Manufacturer Siemens
Application Integrated Chemistry System
Contents1 LM
Dimensions 48 X 52 X 99 Inch Normal, 61 X 75 X 100 Inch With Monitor Fully Extended, Lids Fully Open, and External UPS
Power Source 115 to 230 VAC, 5.5 to 11 A, 50 Hz AC Powered
Readout Type 17 Inch Diagonal Monitor
Sample Type Serum, Plasma, Urine, Cerebrospinal Fluid Sample
Test Name Anemia, Bone Metabolism, Cardiac, Diabetes, Drugs of Abuse/Toxicology, General Chemistry, Immunosuppressant Drugs, Oncology, Reproductive Endocrinology, Specific Proteins, Therapeutic Drug Monitoring (TDM), Thyroid
Throughput 440 Tests per Hour (Photometric) / 187 Tests per Hour (IMT) / 167 Tests per Hour (Heterogeneous Immunoassay)
Time To Results 1.5 mins (IMT), 2.9 to 4 mins (Electrolytes), 9.3 mins (CMP-6), 11 mins (TNI), 15.5 mins (HCG)
UNSPSC Code 41115807
User Interface Touch Screen, Keyboard
Weight 1095 lbs.
Compare Selected Items Email

Similar Items

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

  • Trusted, proven, built-in technologies including LOCI® chemiluminescence, for fast and reliable results
  • Easy-to-use Dimension system provides the confidence that trained operators can run any test, any time
  • Chemistry and immunoassay integration allows simultaneous processing to maximize workflow efficiency
  • Random-access clinical chemistry and immunoassay system with LOCI® chemiluminescence technology
  • 5 mL, 7 mL, 10 mL Tubes; 1.5 mL sample cups; 1 mL small sample containers and pediatric tube sample tubes
  • 60 Sample positions in six 10-tube segments; positive sample identification sample wheels
  • Qualitative check for hemolysis, lipemia, and icterus; clot detection, flagging, and management; short-sample detection, flagging, and management
  • Automatic repeat testing from the original sample
  • 1:1.5 up to 1:200 Automatic dilution
  • Automatic reflex testing based on results of first test
  • Automated wash
  • Standard tungsten halogen lamp, operation at 6.5 A (6.8 V) light source
  • The filter wheel holds optical filters for wavelengths of 293, 340, 383, 405, 452, 510, 540, 577, 600, 680 and 700 nm
  • Serum blank, cell blank, reagent blank, measurement point change, autodilution automatic correction
  • Linux, 1 GB RAM, ethernet port for remote access via Siemens remote service (starting with software version 10.1); modem for remote diagnostic access
  • CD, DVD, and USB (starting with software version 10.0)
  • Water system: Instrument may be supplied with a water purifier that provides instrument feed water; if an alternative water system is used, water must adhere to Siemens water specifications
  • 5 Liter/hour Max water consumption, 40 Liter/hour drain, <75 dBA at 1 m While operating noise, 5293 BTU/hour average heat output, 18 to 30°C operating temperature range, 20 to 80% non-condensing humidity
