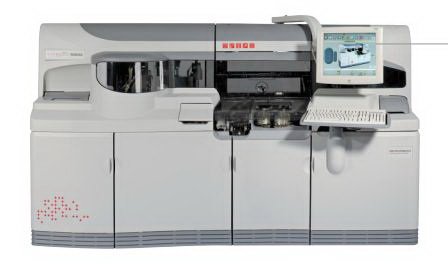

Picture of Integrated Chemistry Analyzer VITROS® 5600 11440 Onboard Assays6802915

Integrated Chemistry Analyzer VITROS® 5600 11440 Onboard Assays6802915

Integrated-Chemistry-Analyzer-VITROS®-5600-11440-Onboard-Assays6802915

SKU #

#989184

MPN #

6802915

Brand

Ortho Clinical Diagnostics

Stock

In Stock

Quantity

100

Features

ANALYZER, VITROS REBURB V5600 D/S

$129,637.20 USD

Product Specifications Product Usage Additional Information
Print
Attribute Name Attribute Value
McKesson # 989184
Manufacturer # 6802915
Brand VITROS® 5600
Manufacturer Ortho Clinical Diagnostics
Application Integrated Chemistry Analyzer
Dimensions 34.9 X 68 X 110 Inch
Number of Tests 11440 Onboard Assays
Power Source 200 to 240 V, 20 to 30 A With UPS, 47/63 Hz
Readout Type 17 Inch LCD Display/Printer
Sample Type Whole Blood / Serum / Plasma / Urine / CSF / Amniotic Fluid Sample
Test Name Chemistry, TDM, DAT/Toxicology, Thyroid/Metabolic, Cardiology, Endocrine, Proteins, Oncology, Infectious Disease, Anemia, Prenatal, 10 User-Defined Chemistry Channels
Throughput Up to 945 Tests / Hour
Time To Results 2.5 Minute (Potentiometric), 6 Minute (Colorimetric), 8 Minute (Immuno-rate), 8 to 16 Minute (MicroTip), 16 to 73 Minute Results (MicroWell)
UNSPSC Code 41115807
User Interface Touch Screen, Keyboard
Weight 2360 lbs.
Compare Selected Items Email

Similar Items

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

  • Measurement principle: Colorimetric/rate, potentiometric (direct ISEs), immuno-rate, turbidimetric, enhanced chemiluminescence
  • Calibration: Up to 25 lots per assay with automatic lot switching; microslide and microtip assays stable up to lot change; microwell stable for up to 28 days; random-access calibration; bar-coded calibrators for microslide and microwell assays
  • Minimum 35 μL dead volume
  • Sample containers: Universal sample trays accommodate: 5 mL, 7 mL, 10 mL collection tubes, 1.5 mL micro-collection containers, VITROS® microsample cups and 0.5 mL and 2 mL cups
  • Dilution capabilities: Auto reflex dilution; operator requested dilution; off-board dilution calculation
  • Operator interface: Color-coded graphical user interface; ergonomic flat, low-glare, LCD, 17 Inch touchscreen monitor; numeric keypad on monitor; detached keyboard for maximum flexibility; onboard documentation and animated help (V-Docs); onboard maintenance documentation
  • Data storage: Read/write disk drive for data input and archiving; USB flash drive (memory stick) capabilities; 5,000 sample programs; 25,000 samples with ability to archive and retrieve through CD-ROM or USB flash drive
  • 15 to 30°C/59 to 86°F Operating temperature, 15% to 75% RH ambient relative humidity, up to 2439 Meter/8000 Foot altitude
