Home / Respiratory / Respiratory Accessories / Handheld Capnograph / Handheld Capnograph Capnocheck® Sleep9004051

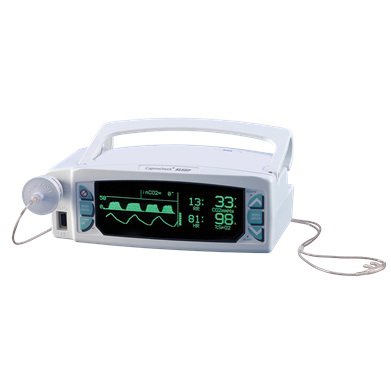

Picture of Handheld Capnograph Capnocheck® Sleep9004051

Handheld Capnograph Capnocheck® Sleep9004051

Handheld-Capnograph-Capnocheck®-Sleep9004051

SKU #

#770602

MPN #

9004051

Brand

Smiths Medical

Stock

In Stock

Quantity

100

Features

MONITOR, CO2 CAPNOGRAPH/OXIMETER

$4,848.96 USD

Product Specifications Product Usage Additional Information
Print
Attribute Name Attribute Value
McKesson # 770602
Manufacturer # 9004051
Brand Capnocheck® Sleep
Manufacturer Smiths Medical
Application Handheld Capnograph
UNSPSC Code 42271516
Compare Selected Items Email

Similar Items

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

Underarm Crutches McKesson Aluminum Frame Tall Adult 350 lbs. Weight Capacity Push Button - Adjustment

One Size Fits Most White NonSterile Not Rated 8211

In Stock

PR/1 $9.76 USD

  • Quiet system minimizes monitor noise
  • Breath-by-breath CO2 detection
  • Disappearing display and no audible alarms or pulse tones in sleep mode
  • Incorporates economical sidestream technology
  • Optional remote alarms
  • Internal rechargeable battery
  • Systems include monitor, moisture traps, moisture trap adaptor, sample lines, AC power cord, operation manual, service manual (CD)
  • Display, indicators, displayed trends, displayed, waveforms
  • Alarms - Physiological: Adjustable volume user-selectable high and low limits for all displayed parameters screen indicators for each parameter; system adjustable volume; silence: Temporary 2 min or off LED indicator
  • 150 mL/min, ±20 Flow rate
  • CO2 - Non-dispersive IR absorption measurement; 0 to 10% CO2 STPD (standard temperature and pressure dry) unit measurement range; user-selectable mmHg, vol. %, kPa; 0 to 100 mmHg or 0 to 10% CO2 or 0 to 13.3 kPa display range; ±2 mmHg accuracy; ±0.3%; ±0.3 kPa, or 4% of reading, whichever is greater (0 to 10% CO2 ); 1 mmHg resolution; 0.1%; 0.1 kPa; calibration 2 point cal; N2O compensation user-selectable 40% (default=off); rise time 360 minutes (average); : 4 Breath averaging, or breath-to-breath selectable
  • Respiration time - 0 to 150 bpm range; 4 Breath average; ±1 bpm accuracy
  • SpO2 - 0 to 100% SpO2 (functional) range; ±2% at 70 to 100%, <70% unspecified accuracy; 2, 4, 8, or 16-beat averaging (default: 2)
  • Pulse rate - 30 to 254 bpm; greater of ± 2 bpm or ±2% accuracy; 8 sec averaging; pulse tone pitch corresponds SpO2 value, volume adjustable or off
  • 105 to 125 V AC, 60 Hz; 90 to 110 V AC, 50 Hz; 208 to 252 V AC, 50 to 60 Hz power requirements
  • Nickel cadmium battery, 6 V DC, internal rechargeable, not user replaceable, fully- charged continuous life of approximately 2 hours, maximum full charge time 4 hours battery life
  • Analog output - CO2 waveform, plethysmogram, end tidal CO2, respiration rate, inspired CO2, %SpO2, pulse rate, 0 or 1 V cal signal any four; 0 to 1 VDC full scale range
  • Serial output: Tabular trends, patient data RS232C; 10 Hours at 4 sec, 31 hours at 12 sec sleep study
